About the Division
Development and production of heater, packages and applications of various forms based on ceramic materials
Process flow chart
- Powder Mixing
- Tape Casting
- Pattern Print
- Lamination
- Slitting(G-CUT)
- Sintering
- Cutting
- Visual
- Ni Wirebrazing
- Final test
Process
| STEP.1 Casting Process |
|
|---|---|
| STEP.2 Green Process (Clean Room) |
|
| STEP.3 End Process |
|
Specification(physical data)
| ITEM | SPEC |
|---|---|
MATERIAL |
ALUMINA ( AI₂O₃) |
DIMENSION (mm) |
PLATE : Max 100*100 / TUBE : Max 32Ø*150 |
OPERATION TEMPERATURE |
10℃~800℃ |
COLOR |
DARK / WHITE |
RESISTANCE |
0.5 ~ 2KΩ±10% |
APPLIED VOLTAGE |
AC 100~240V(50/60Hz) / DC 12~24V |
T.C.R |
2500~4000 ppm/℃ |
FLEXURAL STRENGHT (MPa) |
360 |
DENSITY (g/㎝³) |
3.5 |
THERMAL EXPANSION COEFFICIENT (10^(−6)/K) |
400℃ : 6.4 / 800℃ : 7.1 |
| Applied parts | Product name | Use | |
|---|---|---|---|
CERAMIC HEATER |
|
PLATE type |
Heat plate heater (temperature at use: 150℃~250℃) |
TUBE type |
Instant water heater |
||
CERAMIC HEATER |
|
RF FILTERS |
Mobile repeater |
|
|
Ion generation |
Automobile air conditioning system |
|
|
|
MLC |
Optic telecommunication parts |
|
|
|
TCB |
Exports |
|
HEATER ASSEMBLY |
|
Electric water heater |
Water heater (2Kw grade) |
|
|
Electric boiler |
Water heater (2Kw~5Kw grade) |
|
|
|
Element |
Water faucet with automatic temperature control features |
CERAMIC HEATER
| Product name | Use | |
|---|---|---|
|
|
PLATE type |
Heat plate heater (temperature at use: 150℃~250℃) |
TUBE type |
Instant water heater |
CERAMIC HEATER
| Product name | Use | |
|---|---|---|
|
|
RF FILTERS |
Mobile repeater |
|
|
Ion generation |
Automobile air conditioning system |
|
|
MLC |
Optic telecommunication parts |
|
|
TCB |
Exports |
HEATER ASSEMBLY
| Product name | Use | |
|---|---|---|
|
|
Electric water heater |
Water heater (2Kw grade) |
|
|
Electric boiler |
Water heater (2Kw~5Kw grade) |
|
|
Element |
Water faucet with automatic temperature control features |

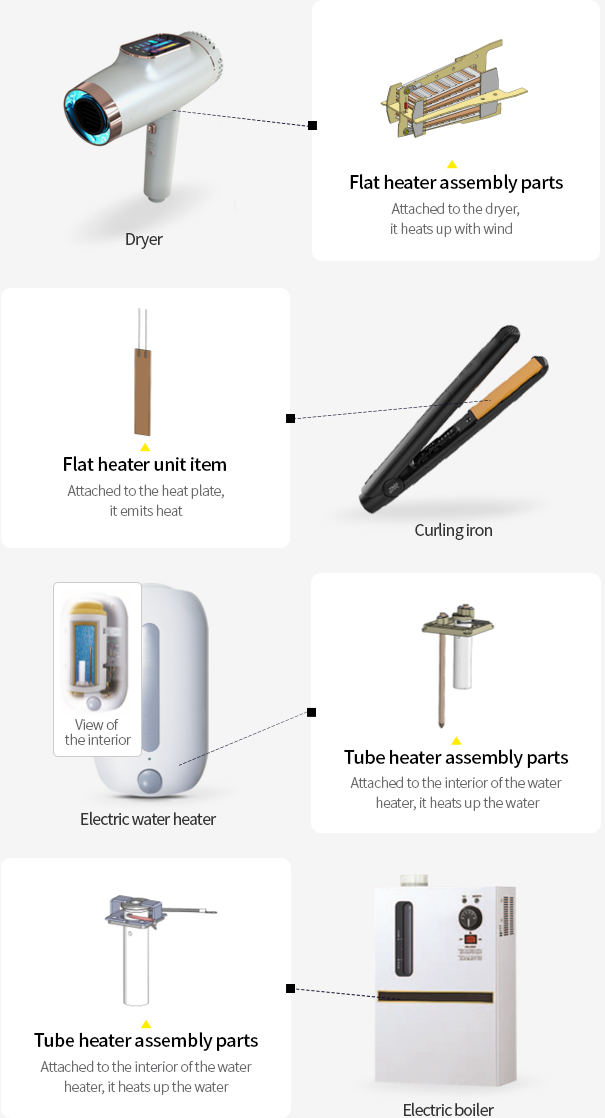

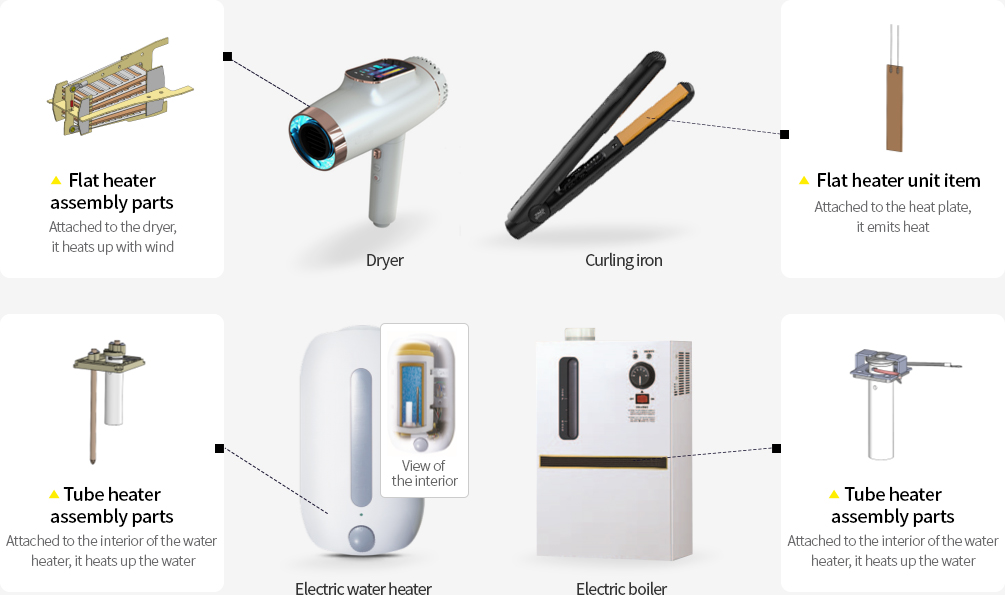

Example of key application 01 For residential use

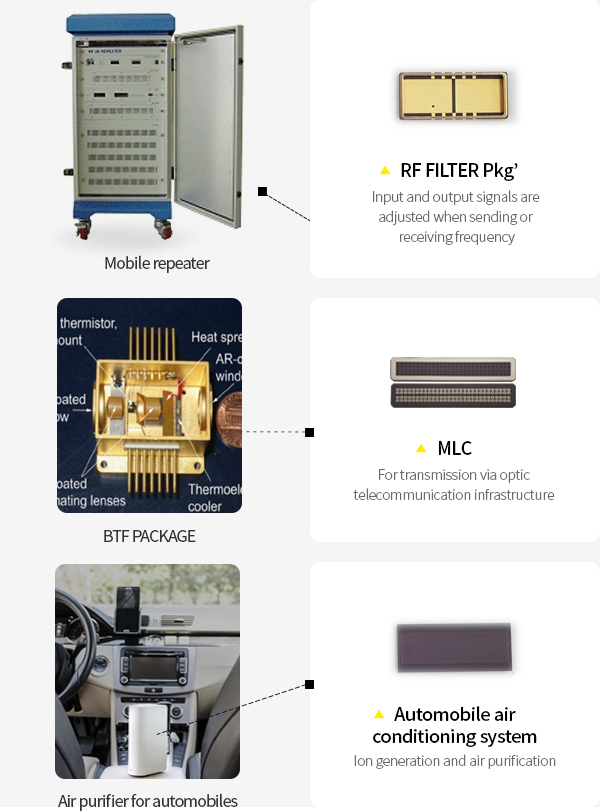

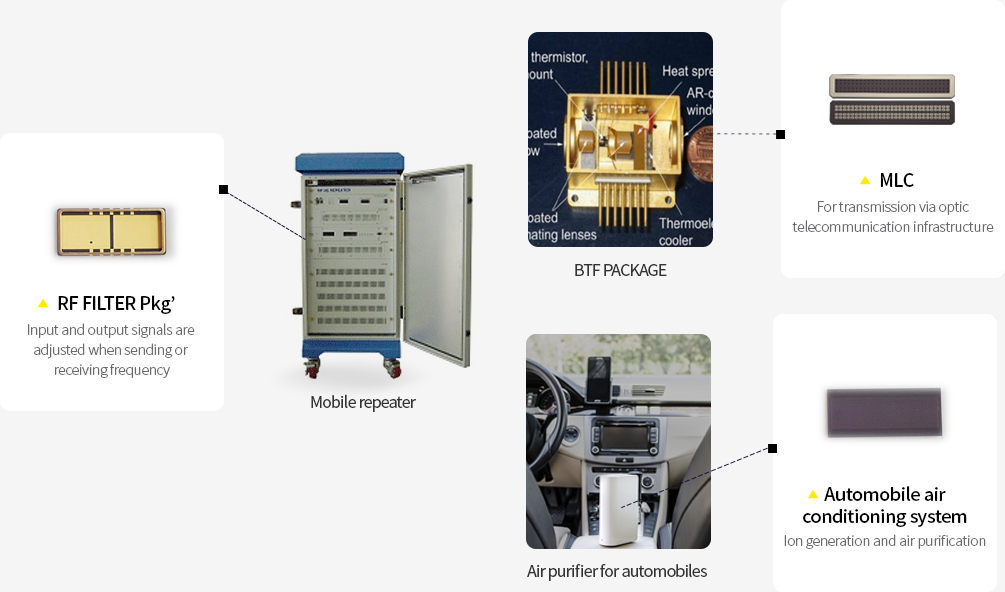

Example of key application 02 Parts for telecommunicationor automobiles

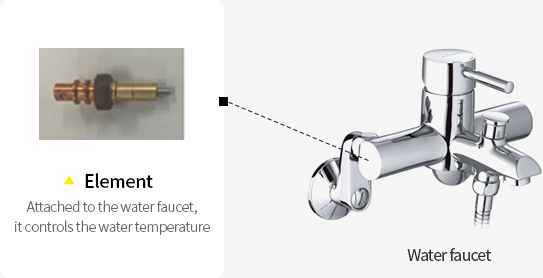

Example of key application 03 For water faucets

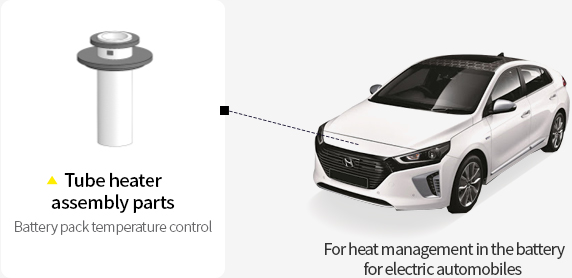

Example of key application 04 For auto parts
